Croissant - Real-Time Vulkan Renderer

Real-time, Physically Based Renderer Built with Vulkan and Modern C++17.

About

The aim of this project was to create a properly functioning render graph that would allow me to learn and experiment with Vulkan, as well as provide an opportunity to learn graphics techniques.

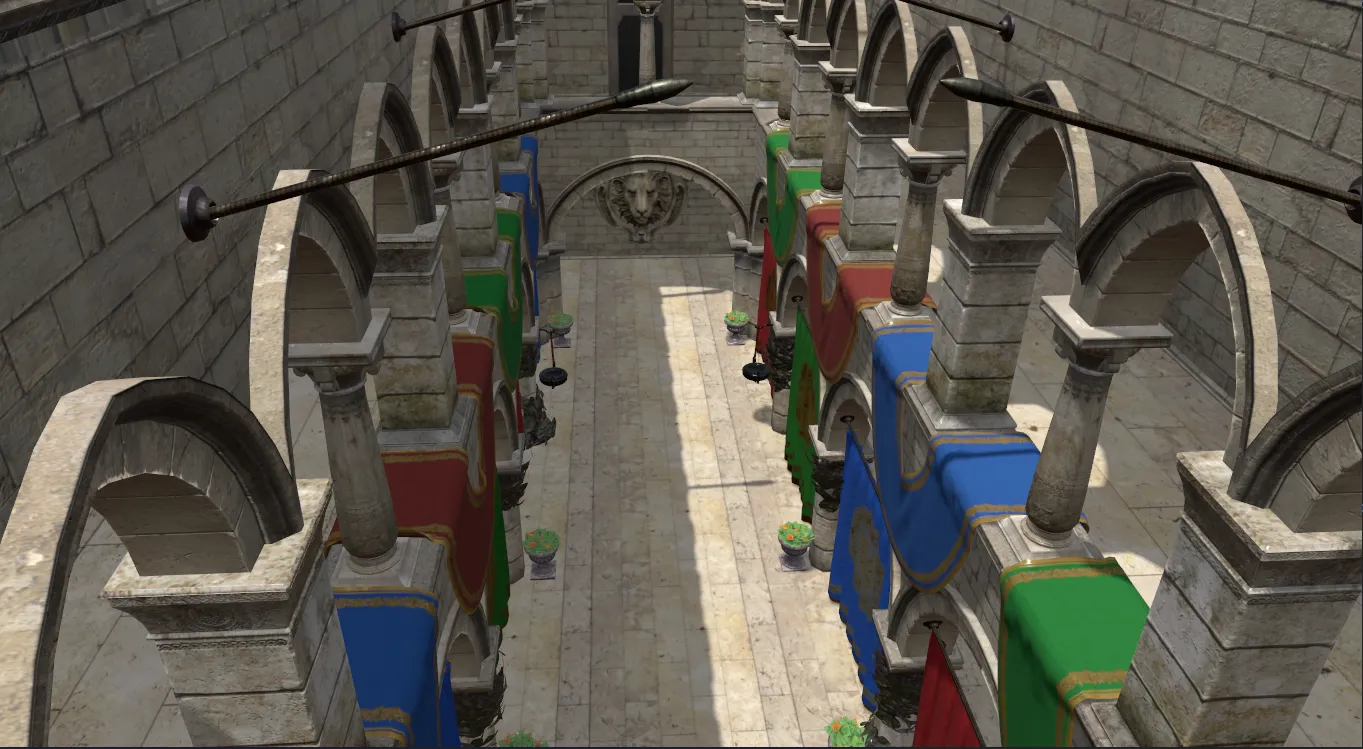

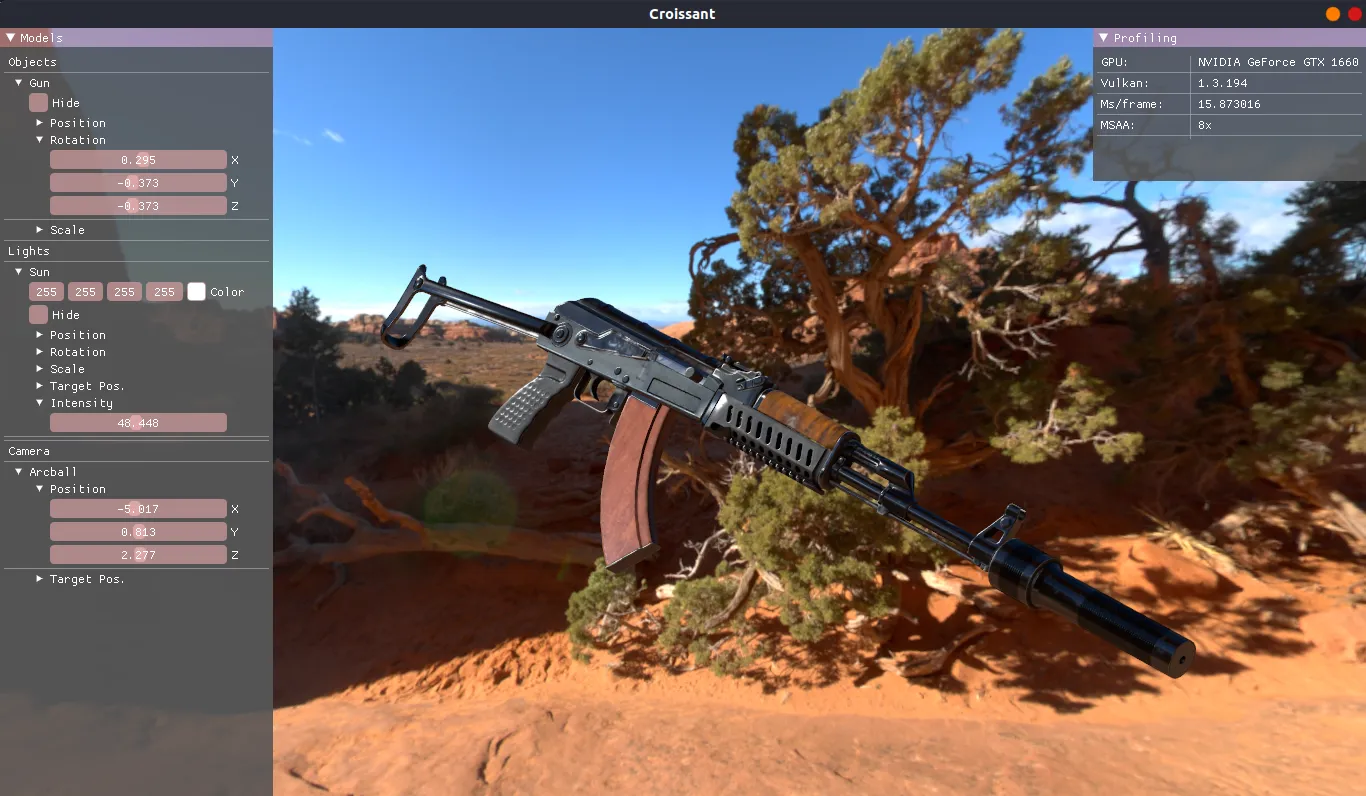

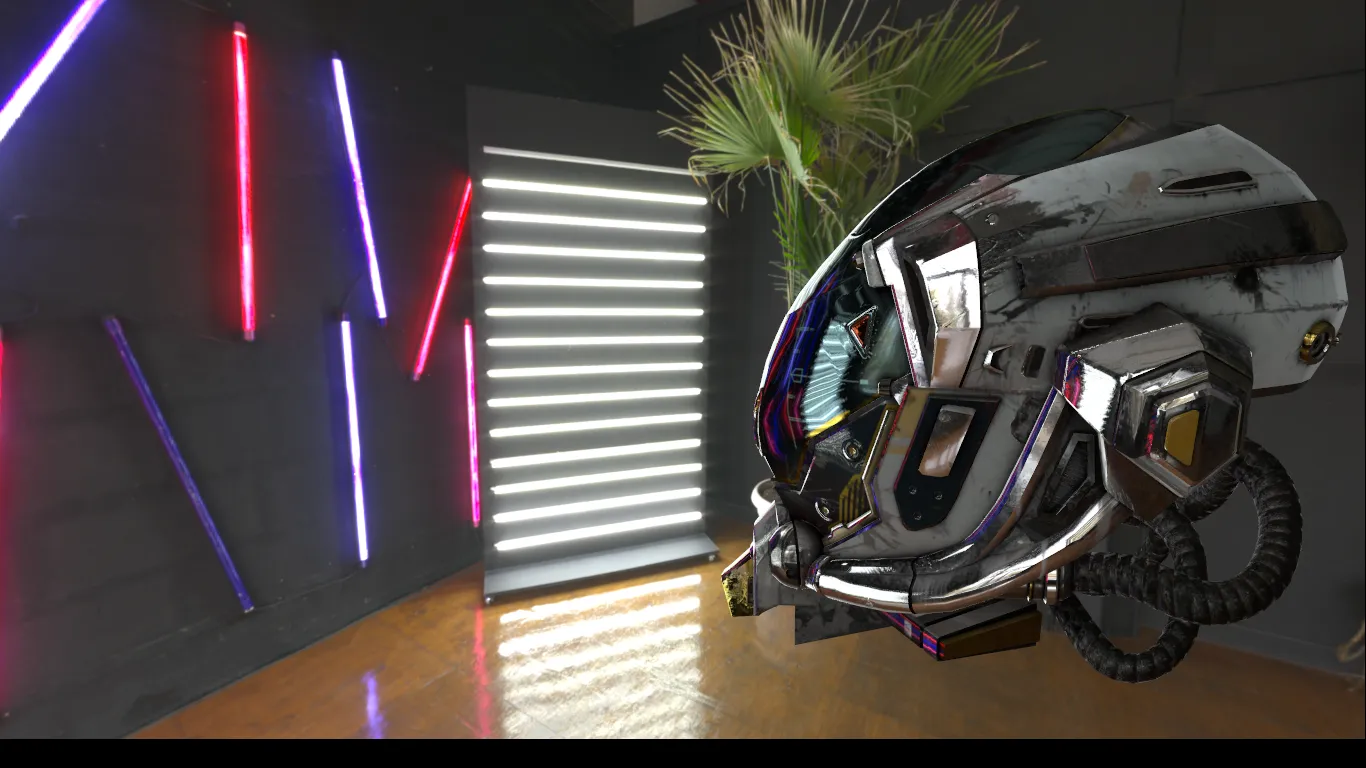

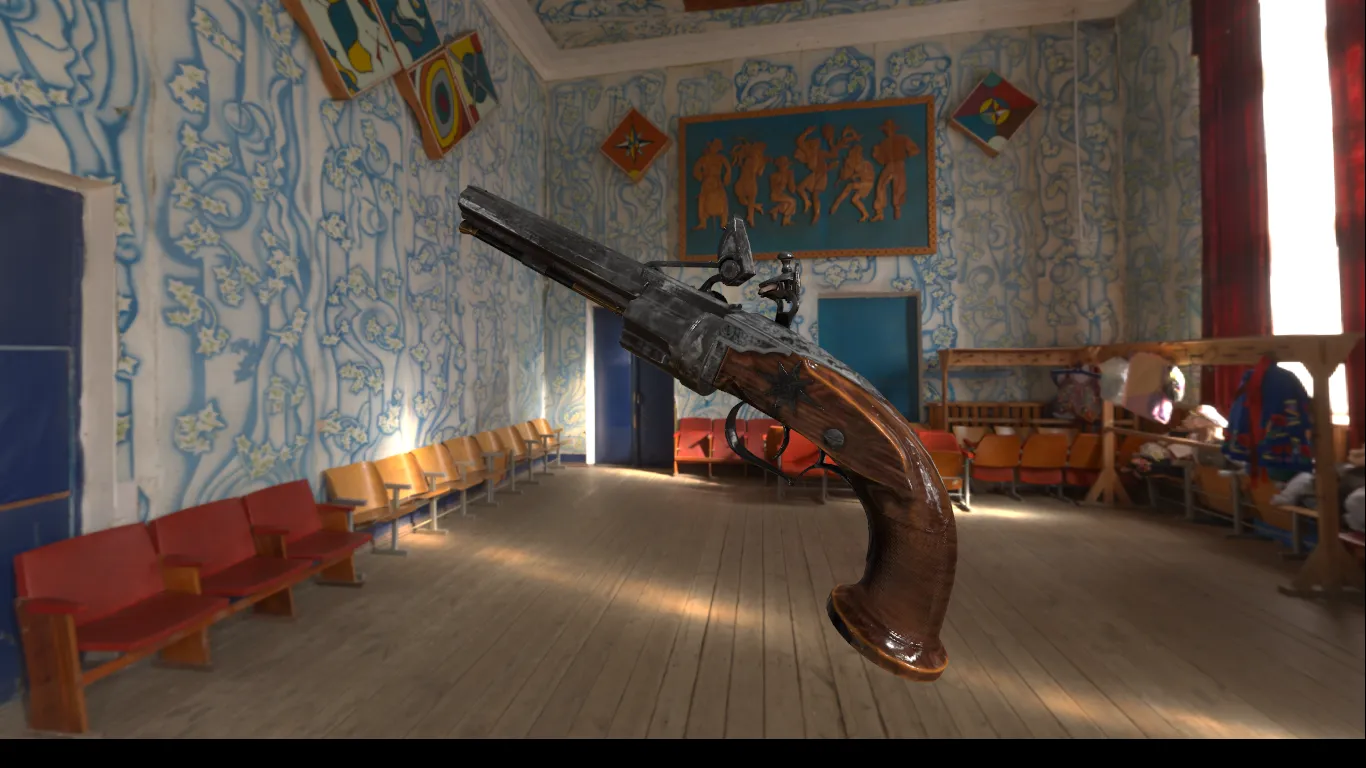

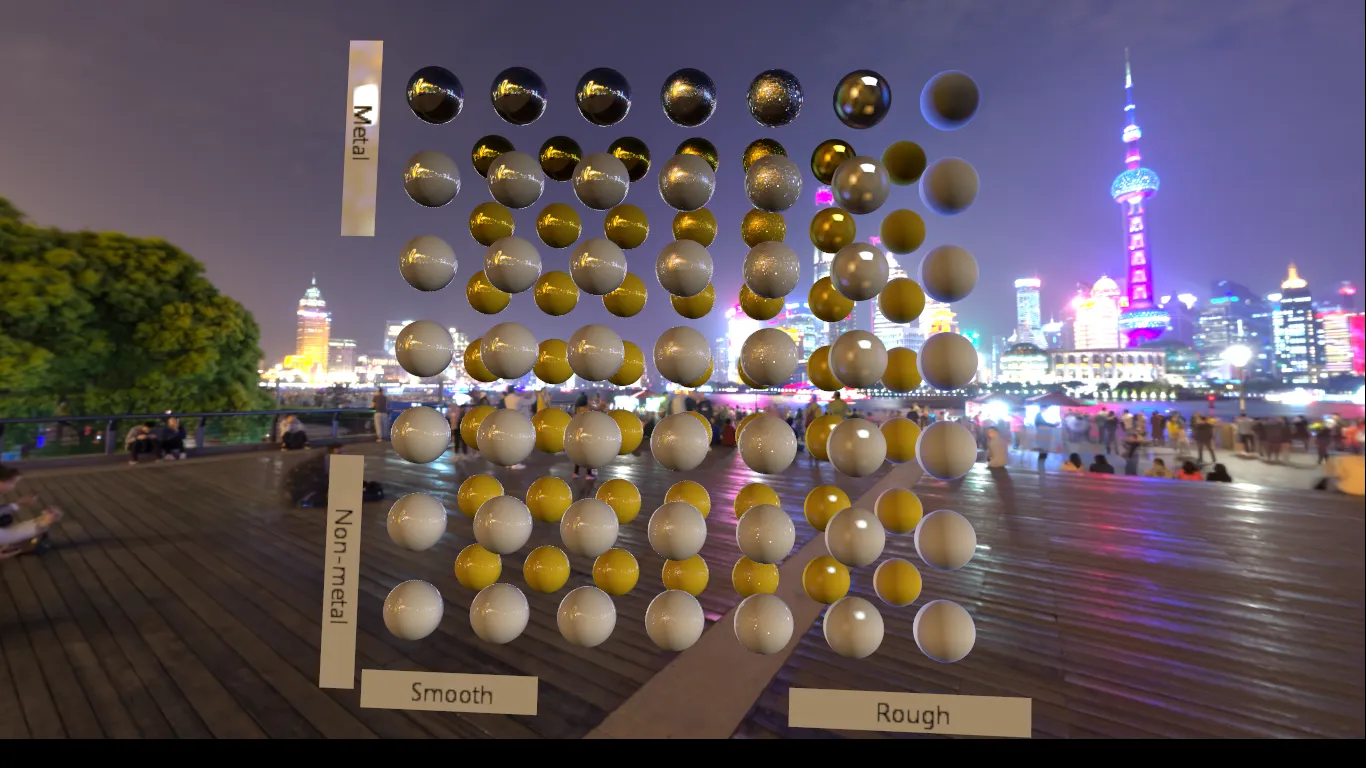

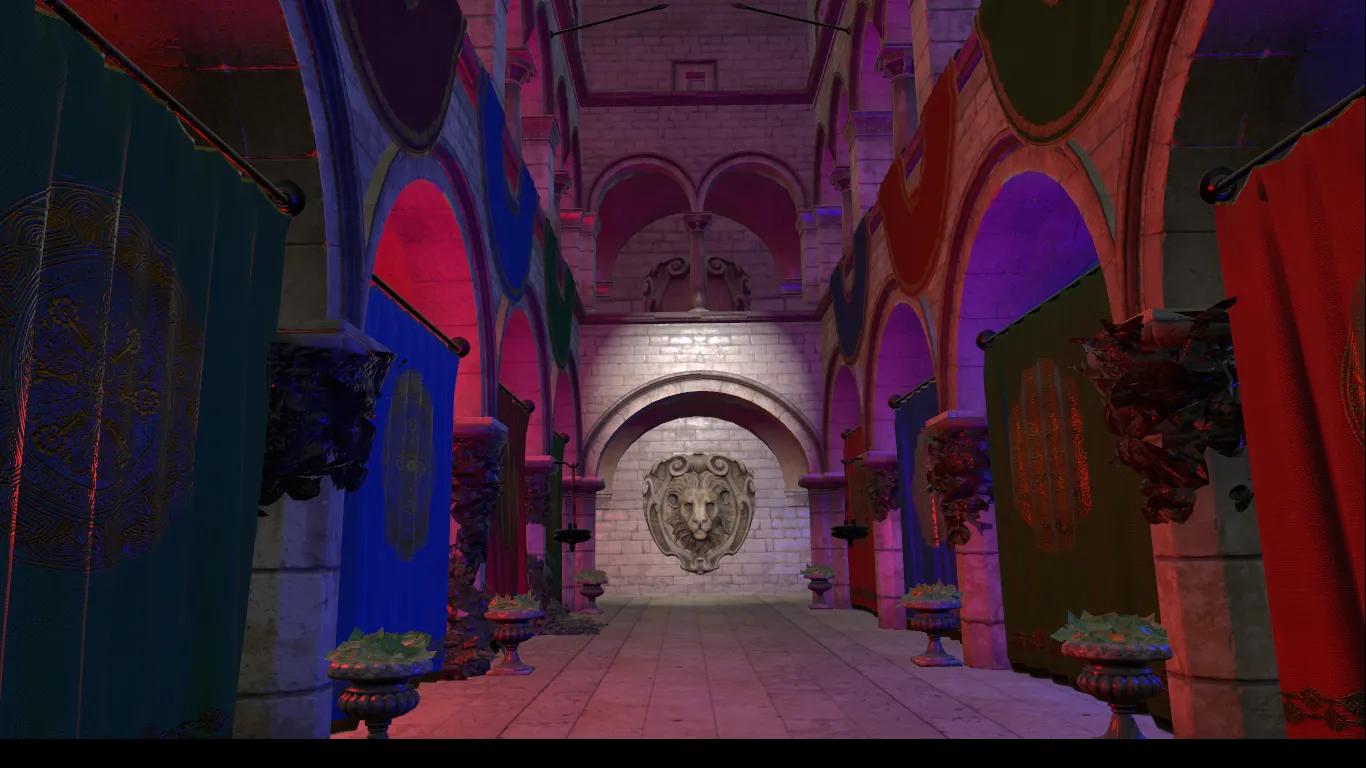

Render Samples

---

s

Features

• Physically based rendering (Cook–Torrance BRDF).
• Image based lighting.
• Forward rendering.
• Multisample anti-aliasing (MSAA).
• HDRI skymap loading.
• Compute shaders.
• Shadow mapping.
• Normal mapping.
• Different light types (directional, point and spot lights).
• Texture mipmaps.
• Arcball camera.
• GUI.

Other Features

• Multi-threaded texture asset importing.
• Model loading.

Code Structure

Croissant
|
|-- assets
|   |-- models              # Meshes and textures
|   `-- skybox              # HDR files with their generated irradiance, prefiltered env. and BRDFlut textures
|
|-- bin                     # Contains the executable files
|
|-- build                   # CMake compile
|
|-- include                 # Project header files
|   `-- Settings            # All user tweakable settings files(scene, camera, pipeline, etc)
|
|-- libs                    # Dependencies
|   |-- ASSIMP
|   |-- GLFW
|   |-- GLI
|   |-- GLM
|   |-- Dear imgui
|   |-- stb_image
|   |-- tracy
|   |-- Vulkan-Loader
|   `-- Vulkan-Tools
|
|-- shaders
|
|-- src                     # C++ implementation files
|   |-- Buffer
|   |-- Camera
|   |-- Command
|   |-- Computation
|   |-- Descriptor
|   |-- Device
|   |-- Features
|   |-- Framebuffer
|   |-- GUI
|   |-- Image
|   |-- Math
|   |-- Model
|   |-- Pipeline
|   |-- Queue
|   |-- Renderer
|   |-- RenderPass
|   |-- Scene
|   |-- Shader
|   |-- Swapchain
|   |-- Texture
|   |-- VkInstance
|   `-- Window
|
`-- CMakeLists.txt          # CMake build script

Third Party Libraries

Here’s the list of the libraries included in the project:

• ASSIMP: Mesh and material loading.
• GLFW: A multi-platform library for window and input.
• GLI: Image library(used to generate the BRDFlut texture).
• GLM: Mathematics library fro graphics software.
• ImGui: GUI.
• stb_image: Image encoding/decoding.
• Tracy: Frame profiler.
• Vulkan-Loader
• Vulkan-Tools: Validation Layers.

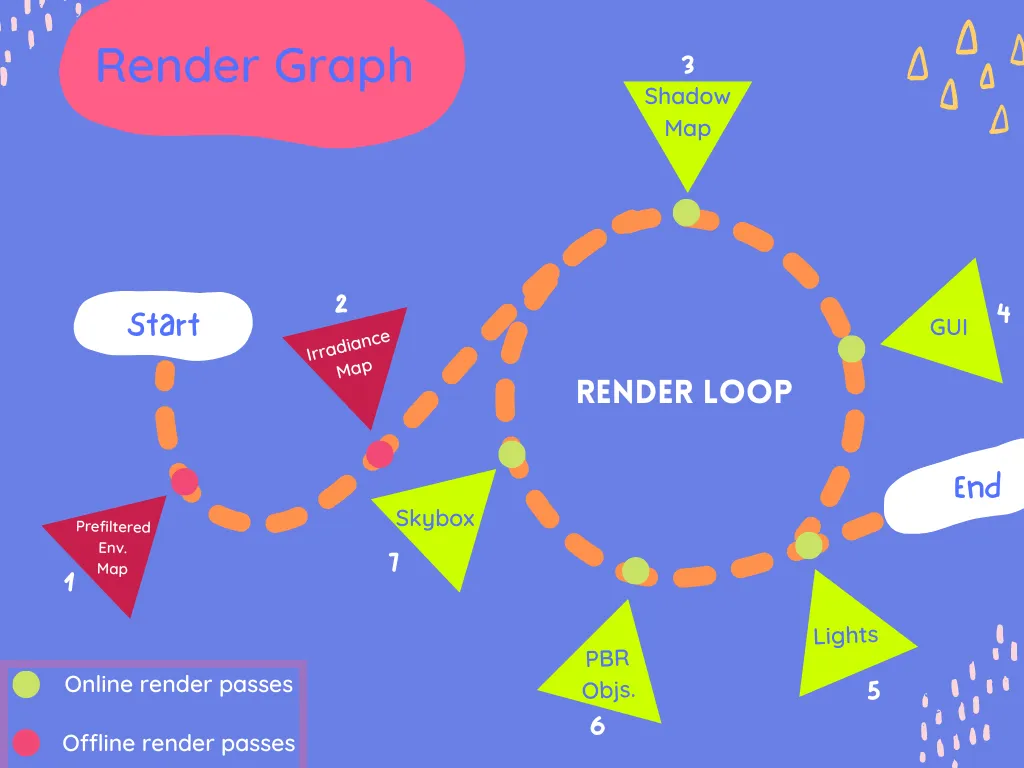

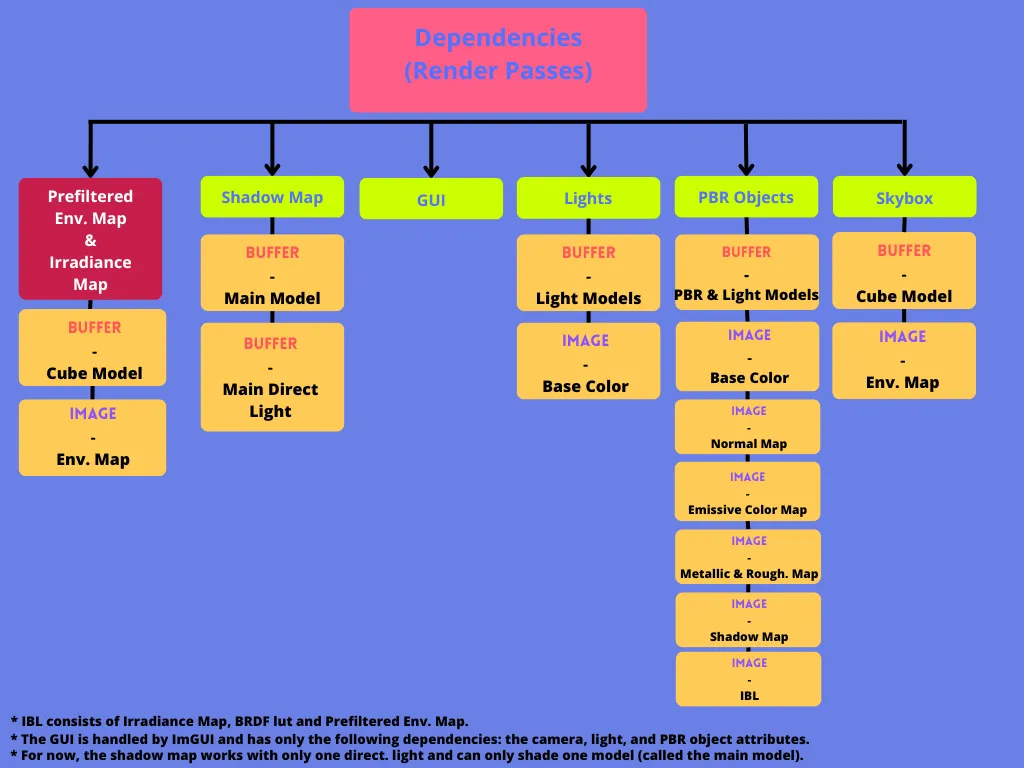

Render Graph

Usage

/* Commands:
*
*   - addSkybox(fileName, folderName);
*   - addObjectPBR(name, folderName, fileName, position, rotation, size);
*   - addDirectionalLight(name, folderName, fileName, color, position, targetPosition, size);
*   - addSpotLight(name, folderName, fileName, color, position, targetPosition, rotation, size);
*   - addPointLight(name, folderName, fileName, color, position, size);
*
*   - demo1(); // Damaged Helmet
*   - demo2(); // AK 47
*   - demo3(); // Collier Flintlock Revolver
*   - demo4(); // Sponza day
*   - demo5(); // Sponza night
*   - demo6(); // Metal Rough Spheres
*/

int main()
{
   Renderer app;

   try
   {
      // Scene
      {
         app.addSkybox("fileName.hdr", "folderName");
         app.addObjectPBR(
               "name",
               "folderName",
               "fileName",
               glm::fvec3(0.0f), // Position
               glm::fvec3(0.0f), // Rotation
               glm::fvec3(1.0f)  // Size
         );
         app.addDirectionalLight(
               "name",
               "folderName",
               "fileName",
               glm::fvec3(1.0f), // Color
               glm::fvec3(0.0f), // Position
               glm::fvec3(1.0f), // Target Position
               glm::fvec3(1.0f)  // Size
         );
      }

      app.run();

   } catch (const std::exception& e)
   {
      std::cerr << e.what() << "\n";

      return 0;
   }

   return 0;
}

Controls

Input	Action
RMB drag	Rotate Camera
Scroll wheel	Zoom in/out

Dependencies

• cmake >= 3.9.1
• gcc >= 9.4.0
• vulkan-validationlayers-dev
• spirv-tools
• glslc

Building on Linux

$ git clone --recurse-submodules https://github.com/SaferGo/CroissantVulkanRenderer.git
$ cd CroissantVulkanRenderer/build
$ bash buildReleaseMode.sh
// or buildDebugMode.sh

After a successful build, the resulting executable can be found in the bin directory.

Tested Toolchains

Compiler	Operating System	Architecture
GCC 9.4.0	Linux Ubuntu 20.04.4 with kernel 5.8.0-53	x64

References

• Vulkan Tutorial.
• 3D Graphics Rendering Cookbook: A comprehensive guide to exploring rendering algorithms in modern OpenGL and Vulkan.
• Vulkan Cookbook: Solutions to next gen 3D graphics API.
• Hybrid Rendering Engine by Angelo1211.
• Vulkan physically-Based Rendering by SaschaWillems.
• Shadow Mapping in Vulkan by igalia.
• Integrating Dear ImGui in a custom Vulkan renderer.

Included Assets

The following assets are bundled with the project:

HDRs

• Winter Forest and Apartment from ihdri.
• Country Club, Farm Field, Neon Photostudio, Peppermint Powerplant 2 and Shangai Bund from PolyHaven (distributed under CC0).
• Arches PineTree from HdrLabs (distributed under Creative Commons Attribution-Noncommercial-Share Alike 3.0 License).

Models

• Cube from Cesium (distributed under Creative Commons Attribution 4.0 International License).
• Damaged Helmet from theblueturtle_ (distributed under Creative Commons Attribution-Noncommercial-Share Alike 3.0 License).
• Sponza from alexandre-pestana.
• Metal Rough Spheres from Analytical Graphics (distributed under CC-BY 4.0).
• AK 47 Tactical Upgrade from Mateusz Woliński (distributed under CC-BY 4.0).
• Collier Flintlock Revolver from Artem Goyko (distributed under CC-BY 4.0).
